Natatorium project
2021-01-15

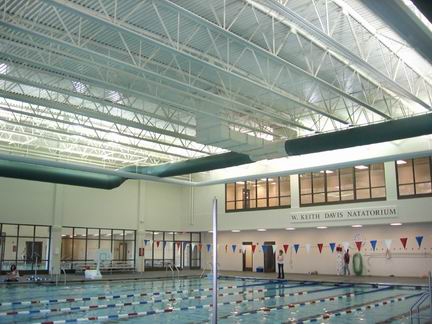

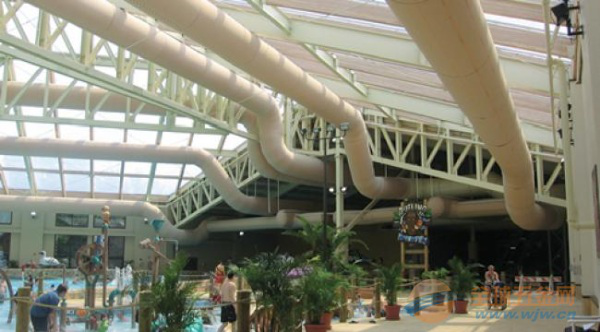

In the indoor natatorium with higher floors, the air is not only humid, but also corrosive. The air supply of the air conditioning system is required to have no sense of blowing, and prevent condensation and corrosion. Considering that the metal air duct is easy to corrode and noisy, which not only affects the overall decoration effect, but also needs to solve the serious condensation problem, the owner requires that bag air ducts be used inside and outside the machine room. The air outlet size of the air conditioning unit is 690 * 690MM. The blue bag air duct is designed to be square to round, and a layer of thermal insulation cotton is wrapped around the square air outlet to prevent the bag air duct inlet from being damaged by long-term friction with the air outlet of the air conditioning unit. The blue cloth bag air duct is arranged along the wall above the natatorium. The diameter of the main pipe is 700MM, and the diameter of the two branch pipes is 500MM. It is designed to use 9 5-inch cloth nozzles for air supply, and the permeable fiber materials are used to achieve the goal of high hole energy conservation in solving condensation problems. The air supply form of the management office next to the swimming pool also adopts the cloth bag air duct with a diameter of 200MM. The air duct is installed above the suspended ceiling. A branch pipe is separated from the main pipe with a diameter of 700MM in the swimming pool and connected to the management office. Then the lower riser is directly connected with the square diffuser with a size of 160 * 160MM fixed in the suspended ceiling.
